Super
Workstation

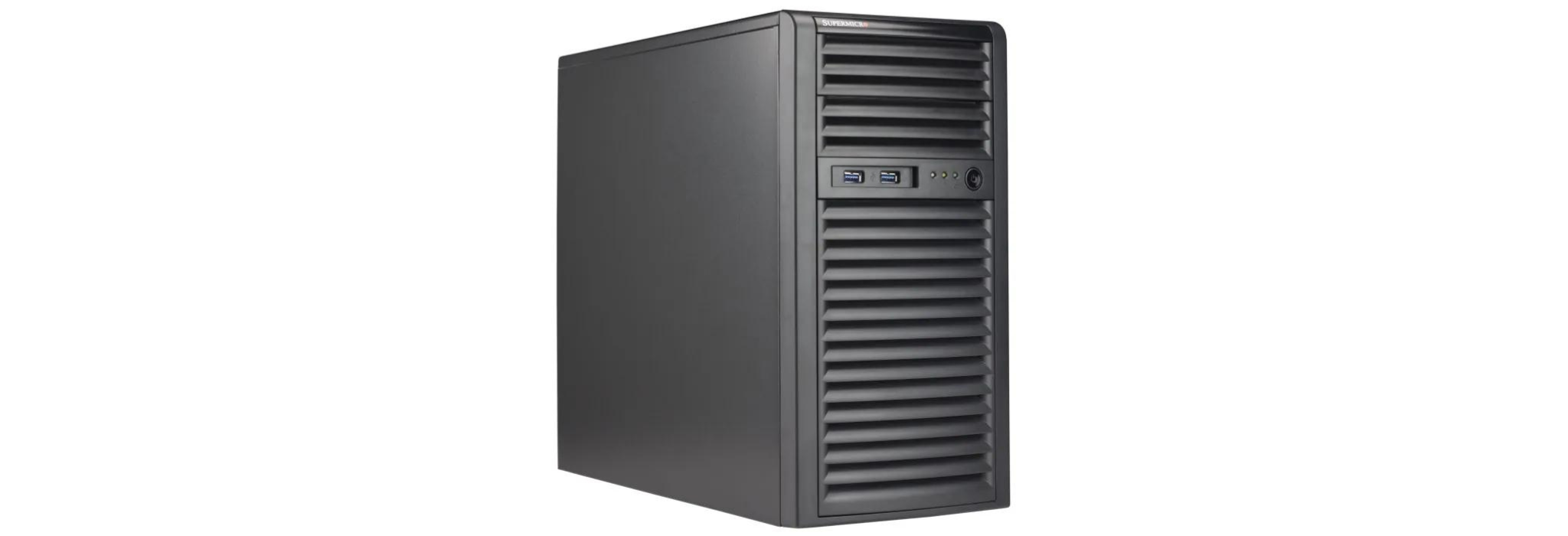

SYS-530T-I

UP mid-tower workstation for small offices and SMB

Request Pricing
Intel Logo
  • Entry-Level System for SOHO and SMB
  • IPMI for remote management
  • Storage, application and centralized data backup system Applications
  1. Supports Intel® Xeon® E-2300 Series Processors
  2. PCIe 4.0 Support
  3. Dual LAN ports, GbE and dedicated IPMI LAN port
  4. 9cm PWM quiet exhaust fan and optional front intake fan
  5. 400W 80PLUS Gold Power Supply
Product SKUs
SuperWorkstation SYS-530T-I
Motherboard
Super X12STL-F
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C252
Network Connectivity
  • 2 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
Input / Output
USB
  • 2 USB 2.0 Type-A port(s) (rear)
Video
  • 1 VGA port(s)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
Power configurations
  • ACPI 6.0
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Chassis
Form Factor
  • mini-tower
Model
  • CSE-731I-404B
chassisWeight
  • Net Weight: 16 lbs (7.26 kg)
  • Gross Weight: 20 lbs (9.07 kg)
Dimensions and Weight
Height
  • 14.25" (362 mm)
Width
  • 7.25" (184 mm)
Depth
  • 16.75" (425 mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Gross Weight: 20 lbs (9.07 kg)
  • Net Weight: 16 lbs (7.26 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Buttons
  • Power On/Off button
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x8 FHFL slot(s)
    • 1 PCIe 4.0 x4 FHFL slot(s)
    • 1 PCIe 3.0 x2 FHFL slot(s)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 3.5" SATA drive bay(s)
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25" bay(s)
System Cooling
Fans
  • 1x 90mm Fan(s)
Power Supply
400W Gold Level power supply
Dimension (WxHxL)
  • 150 x 86 x 140 mm
+12V
  • Max: 12.62A / Min: 0.05A (100Vac-240Vac)
  • Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 2.23A / Min: 0A
AC Input
  • 400W: 100-240Vac / 50-60Hz
Output Type
  • 24pin ATX
Certification
  • Gold Level
  • [Test Report]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Standard Parts (Parts Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X12STL-F


CSE-731I-404B		 1


1		 Super X12STL-F Motherboard


mini-tower Chassis
Cable CBL-0044L 4 7pin SATA (STR to STR), 57.5cm, Flat, PBF
CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
CBL-CUSB-1007 1 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
MCP-110-00033-0N 2 Binding Head Screw (with teeth) #632*4.5L
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
*Power Supply PWS-404-PQ 1 PS2 400W Multi-output High Efficiency 80PLUS Gold Power
*Fan FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
*Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
DVD Kit CBL-SAST-0624 • 1 70cm SATA Cable S-S 30AWG
CBL-0082L • 1 Y SPLIT SATA POWER ADAPTER
DVM-TEAC-DVDRW24-HBT 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
Fan FAN-0113L4 1 80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0051AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
