Hyper SuperServer SYS-212H-TN

2U UP Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Previous slide

Next slide

Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
Single Intel® Xeon® 6 Processor.
16 DIMM slots supporting up to 1TB of memory (6700E series CPU).
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.

Product SKUs
SuperServer SYS-212H-TN

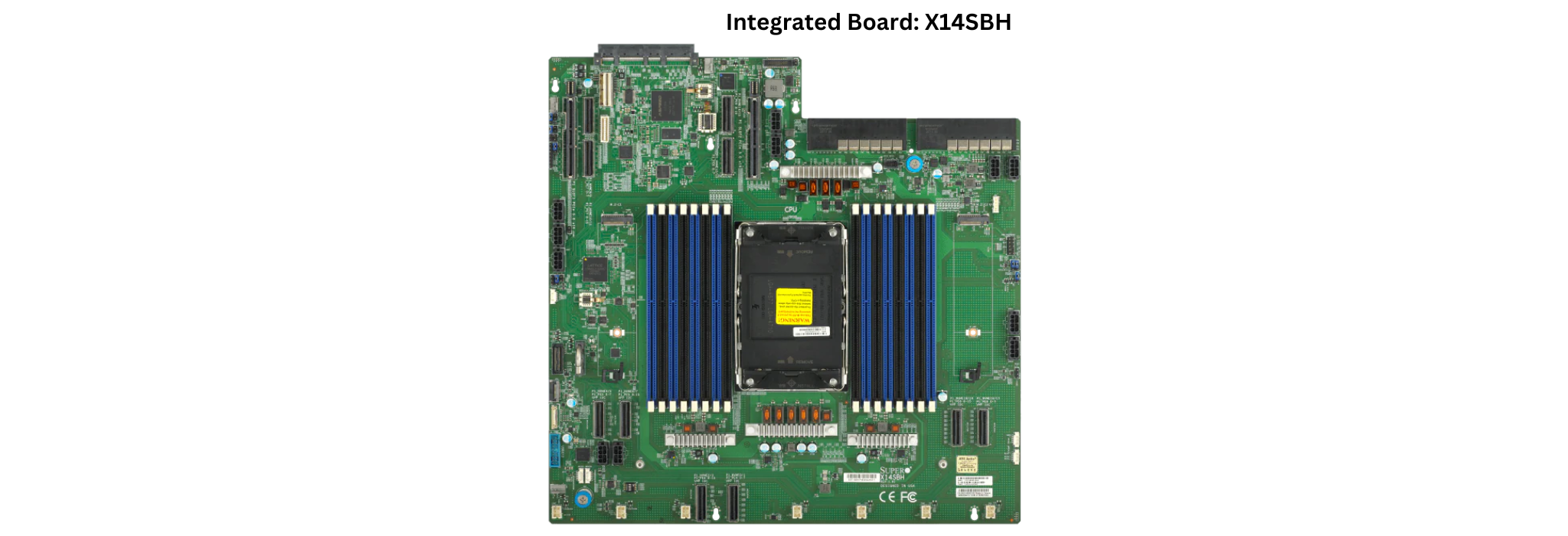

Motherboard
Super X14SBH

Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores
Core Count	Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 330W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width or 2 single-width GPU(s)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM

On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset	System on Chip
Network Connectivity	Via AIOM

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 64MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	3.5" (88.9 mm)
Width	17.2" (437 mm)
Depth	31.74" (806.2 mm)
Package	9.96" (H) x 26.46" (W) x 43.31" (D)
Weight	Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg)
Available Color	Silver

Front Panel
LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

Expansion Slots
PCI-Express (PCIe) Configuration	Option A 1 PCIe 5.0 x16 FHFL double-width slot(s) 1 PCIe 5.0 x16 FH/10.5"L double-width slot(s) 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) Option B 1 PCIe 5.0 x16 FHFL double-width slot(s) 2 PCIe 5.0 x8 FH/10.5"L slot(s) 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bay(s) 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bay(s) Option A: Total 16 bay(s) 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bay(s) 8 front hot-swap 2.5" SAS/SATA drive bay(s) Option B: Total 16 bay(s) 16 front hot-swap 2.5" SAS/SATA drive bay(s) Option C: Total 24 bay(s) 24 front hot-swap 2.5" SAS/SATA drive bay(s) (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slot(s) (M-key 2280/22110/25110; VROC required for RAID)

Power Supply

2x 1200W

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
AC Input	800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

2x 1300W

2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies

2x 1600W

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)

2x 2600W

2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Optional Parts List
	Part Number	Qty	Description
Cable Management Arm + Rail Set	MCP-290-00168-0N + MCP-290-11901-0N	1	7.5" cable management arm + 41" long ball-bearing rail set
Drive Bay Configuration Options	Refer to User's Manual	-	8, 16 & 24 drive bay configuration options for NVMe, SAS, or SATA support
Drive Tray Label	LBL-0968	-	Pack of 4 "NVMe" labels for hot-swap drive tray
Front Bezel	MCP-210-21903-0B	1	Front bezel for 2U Hyper
Global Services & Support	OS4HR3/2/1	1	Gold Level, 3/2/1-year onsite 24x7x4 SLA
	OSNBD3/2/1	1	Silver Level, 3/2/1-year onsite NBD SLA
	SMSAD3/2/1	1	Bronze Level, 3/2/1-year 3BD SLA
PCIe Slot Configuration Options	Refer to User's Manual	-	PCIe slot configuration options to enable PCIe slots 1-8
Rail Set	MCP-290-11902-0N (included in the system )	-	35.25" ball-bearing rail set for Hyper servers
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
