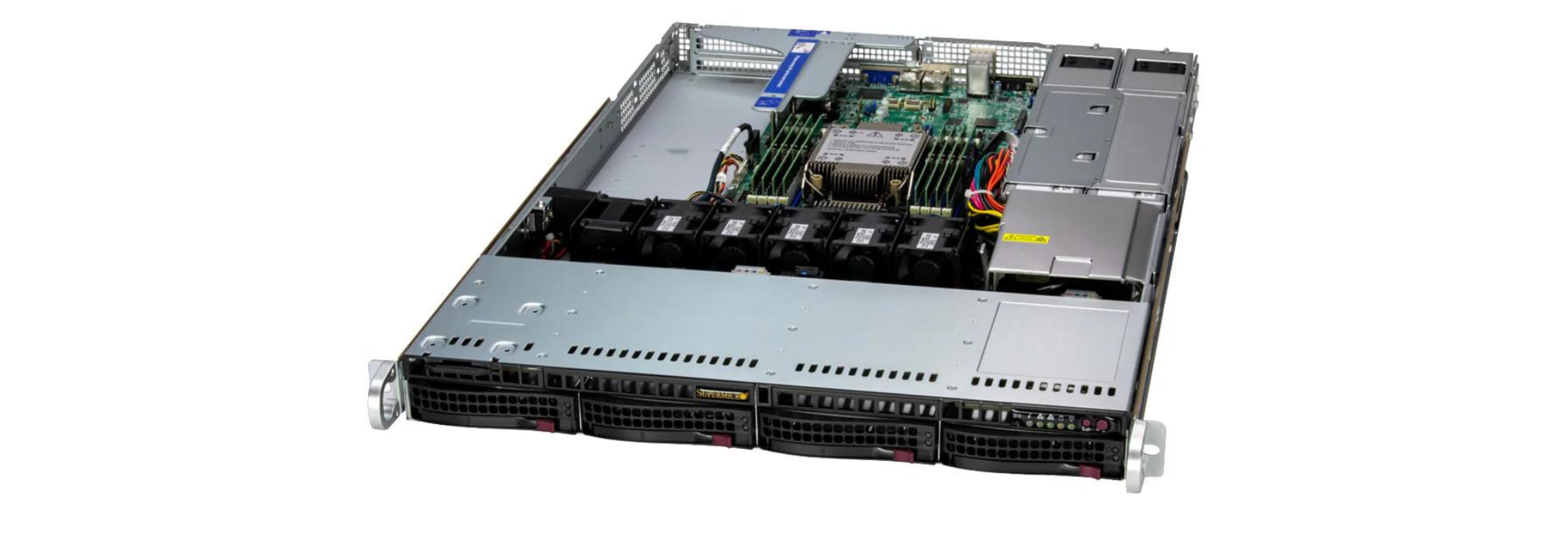

WIO SuperServer SYS-512B-WR

1U UP WIO with 4 hot-swap 3.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

Previous slide

Next slide

WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
Single Intel® Xeon® 6 6700 series processor with E-cores
8 DIMM slots supporting up to 1TB of memory (6700E series CPU).
Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
Native SATA drives supported, with option PCIe 5.0 NVMe and SAS.
Trusted Platform Module (TPM) 2.0 onboard.

Product SKUs
SuperServer SYS-512B-WR

Motherboard
Super X14SBW-F

Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores
Core Count	Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 300W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width or 2 single-width GPU(s)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory
Memory	Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

On-Board Devices
SATA	SATA (6Gbps)
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset	System on Chip
Network Connectivity	2 RJ45 1GbE with Intel® I210

Input / Output
LAN	2 RJ45 1 GbE LAN port(s) 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
USB	2 USB 3.2 Gen1 Type-A port(s) (rear) 2 USB 3.2 Gen1 port(s) (Header)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear) 1 COM port(s) (Header)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	25.6" (650 mm)
Package	8.5" (H) x 23.5" (W) x 33.7" (D)
Weight	Gross Weight: 34.5 lbs (15.46 kg) Net Weight: 21.5 lbs (9.75 kg)
Available Color	Black

Front Panel
LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED Unit Identification (UID) LED
Buttons	Power On/Off button System Reset button Unit Identification (UID) button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHFL slot(s) 1 PCIe 5.0 x8 (in x16) LP slot(s)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bay(s) 4 front hot-swap 3.5" SATA drive bay(s) Option A: Total 4 bay(s) 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bay(s) Option B: Total 4 bay(s) 4 front hot-swap 3.5"/2.5" SAS* drive bay(s) (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110; VROC required for RAID)
Peripheral Bays	2 slim peripheral bay(s)

System Cooling
Air Shroud	1 CPU Air Shroud(s)
Fans	1 AOC cooling Fan(s) (optional) 5 middle cooling PWM 40x40x56mm Fan(s)

Power Supply

2x 860W

2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
AC Input	800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V	Max: 66.67A / Min: 0A (100Vac-127Vac) Max: 71.67A / Min: 0A (200Vac-240Vac) Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

Optional Parts List
	Part Number	Qty	Description
CacheVault	BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)	1	SuperCap mounting bracket for PCIe location
CacheVault	BTR-CV3916-1U1 (For S3908/S3916)	1	SuperCap kit mounting in 1U 40x56 fan tray
Cooling Fan	FAN-0163L4 •	1	40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Bezel	MCP-210-11603-0B	1	Black Front Bezel
Intel VROC RAID Key for NVMe	AOC-VROCSTNMOD	1	Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
Intel VROC RAID Key for NVMe	AOC-VROCPREMOD	1	Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
NVMe Cable (Drive Bay 0-1)	CBL-MCIO-1235M5Y •	1	MCIO (x8 to x8) STR,65CM,85 OHM
NVMe Cable (Drive Bay 2-3)	CBL-MCIO-1260M5Y •	1	MCIO (x8 to x8) STR,26CM,85 OHM
NVMe Drive Tray(s)	MCP-220-00138-0B •	4	Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Storage Control Card and Cable(s)	AOC-S3908L-H8iR-16DD	1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA)	AOC-S3808L-L8IT	1	Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
