CloudDC A+ Server
AS-1115CS-TNR

1U CloudDC with 10 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

Request Pricing
AMD logo
  • Web Server, Firewall Application
  • Cloud Computing, Compact Server
  • CDN, Edge Nodes
  • Data Center Optimized, Value IaaS
  • DNS & Gateway Servers, Firewall Application
  1. Single 4th Generation AMD EPYC™ 9004 Series Processors
  2. 2 PCIe 5.0 x16 FHHL
  3. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  4. 10x 2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
  5. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies;(*Full redundancy based on configuration and application load)
  6. 2 On-board PCIe 3.0 x2 M.2 NVMe 80mm/110mm (Boot)
Product SKUs
A+ Server AS -1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
A+ Server AS -1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard
Super H13SSW
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: L4, A2
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
  • View AIOM Options
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP-A
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Package
  • 7.8" (H) x 23.8" (W) x 32.4" (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & sliver body

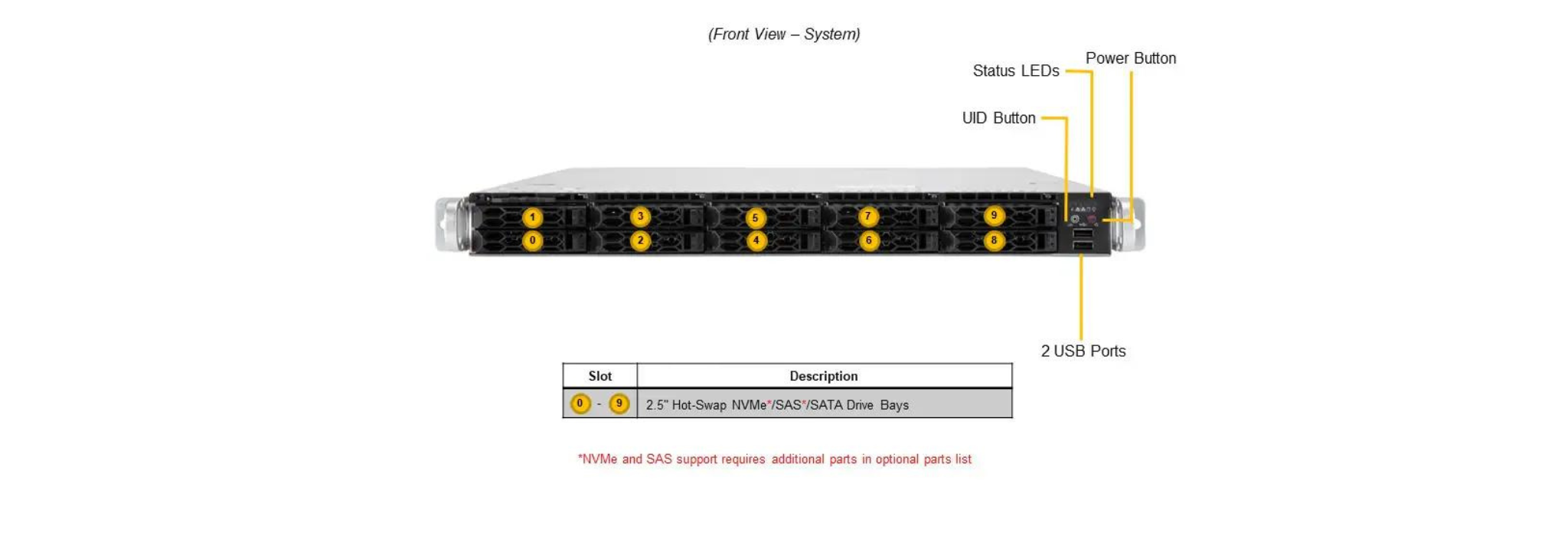

Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply
1x 860W
1x 860W Redundant Platinum Level (94%) power supply
Dimension (WxHxL) 54.5 x 40.25 x 322 mm
AC Input 800W: 100-127Vac / 50-60Hz
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12V Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Optional Parts List
  Part Number Qty Description
10 NVMe Optional Cables CBL-MCIO-1218M5RE-J 4 MCIO x8 (STR to RE), 18cm,G5,32AWG
CBL-MCIO-1228M5RE 1 MCIO x8 (STR to RE), 28cm, 30#, Gen5, 85Ohm
3908/3916 CacheVault BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
3908/3916 SuperCap Mount MCP-240-00203-0N 1 SuperCap mounting bracket for PCIe location
MCP-240-00127-0N 1 SuperCap mounting tray for 2.5" drive location
MCP-240-21747-0N 1 SuperCap mounting card for AIOM location
Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
M.2 by AOC AOC-SLG4-2H8M2 1 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3808L-L8iT OR 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
AOC-S3908L-H8iR(-16DD/-32DD) 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
OR - -
AOC-S3816L-L16iT OR 1 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
AOC-S3916L-H16iR 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
CBL-SAST-1265F-100 1 Slimline x8 (STR) to Slimline x4 (STR),64CM
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
SYS-121H-TNR parts list
