A+ Server 1114S-WN10RT

1U WIO with 10 hot-swap U.2 NVMe/SATA bays and 3 PCIe 4.0 slots

Key Applications

Virtualization
Cloud Computing
All Flash Storage

Key features

1. Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

3. 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot

4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License key
(SFT-OOB-LIC) included for
OOB BIOS management

5. 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support

6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller

7. 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)

8. 2 SuperDOM (Disk on Module) ports

9. 750W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

Specifications


Product SKUs

AS -1114S-WN10RT	Standard version with PWS-706P-1R (Platinum Level)
AS -1114S-WN10RT-EU	European version with PWS-861A-1R (Titanium Level)


Motherboard

Super H12SSW-NTR


Processor/Cache

CPU	Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Support CPU TDP up to 280W
Cores	Up to 64 Cores


System Memory

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs


On-Board Devices

Chipset	System on Chip
SATA	SATA3 (6Gbps)
Network Controllers	Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC


Input / Output

SATA	2 SATA3 (6 Gbps) ports
LAN	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports


System BIOS

BIOS Type	AMI 256Mb SPI Flash ROM


Management

Software	Super Doctor 5 Watch Dog SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	1U Rackmount
Model	CSE-116TS-R706WBP5-N10


Dimensions and Weight

Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	23.5" (597mm)
Package	7.63" (H) 23.42" (W) 31.45" (D)
Weight	Net Weight: 25 lbs (11.34 kg) Gross Weight: 39 lbs (17.69 kg)
Available Colors	Black

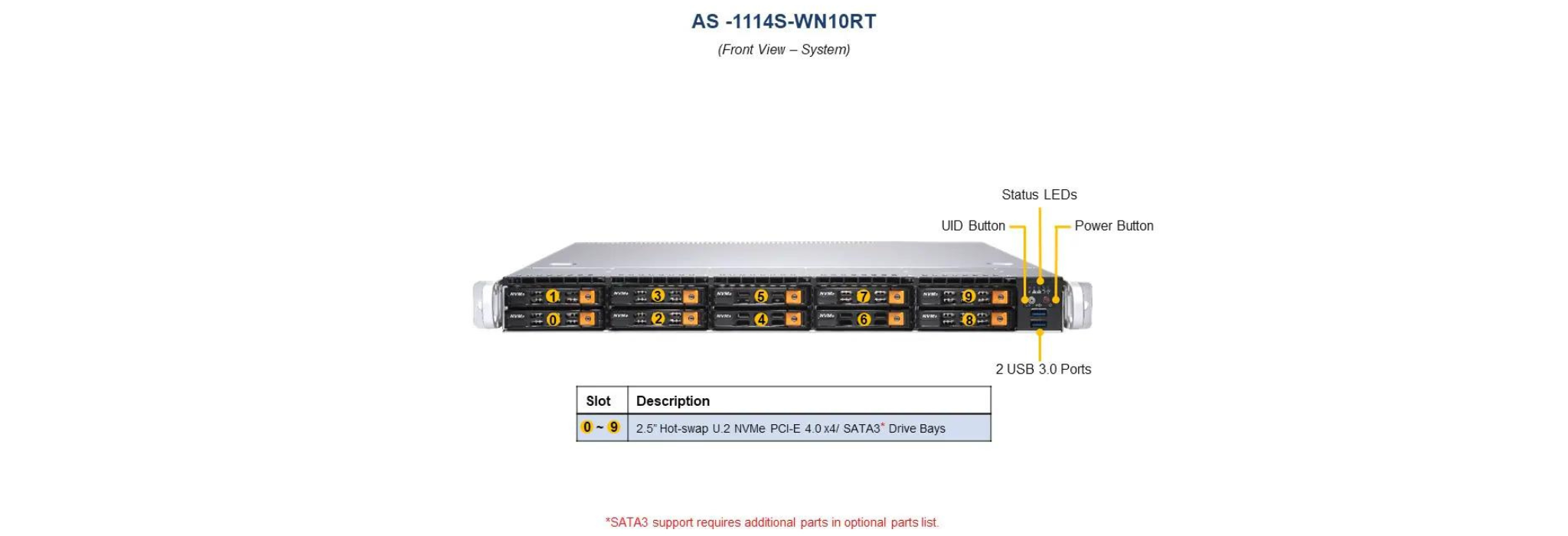

Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED


Expansion Slots

PCI-Express	2 PCI-E 4.0 x16 (FHHL) slots 1 PCI-E 4.0* x16 (LP) slot 2 PCI-E 4.0 x2 NVMe M.2 slots * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.


Drive Bays

Hot-swap	10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support


Backplane

Supports 10 NVMe or 10 SATA3


System Cooling

Fans	6 heavy duty fans with Optimal Fan Speed Control


AC/DC240V Input Redundant Power Supply

700W/750W Redundant Power Supplies with PMBus
Note: AS -1114S-WN10RT-EU (European) SKU uses PWS-861A-1R (Titanium Level)
Total Output Power	700W: 100 - 140Vac 750W: 200 - 240Vac 750W: 200 - 240Vdc (for CCC only)
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V	Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Certified [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List


Optional Parts List

	Part Number	Qty	Description
Storage Controller card & cable	AOC-S3008L-L8e & 1x CBL-SAST-1295-100 AOC-S3008L-L8i & 1x CBL-SAST-1295-100 AOC-S3108L-H8iR & 1x CBL-SAST-1295-100	- - -	Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG
Cable Management Arm	MCP-290-00085-0N	-	Supermicro Cable Management Arm for 1U Chassis
TPM	AOM-TPM-9655V	-	Vertical TPM with Infineon 9655 TCG 1.2
TPM	AOM-TPM-9665V	-	AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
SATADOM	SSD-DM128-SMCMVN1	-	SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
	SSD-DM480-SMCMVN1	-	SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
	SSD-DM064-SMCMVN1	-	SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
	SSD-DM032-SMCMVN1	-	SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
	MEM-IDSAVS4-032G	-	SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
	MEM-IDSAVM8A-128G	-	SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
	MEM-IDSAVM8A-256G	-	SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
	MEM-IDSAVE1-064G	-	SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
	MEM-IDSAVS3-032G	-	SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
	MEM-IDSAVT1-256G	-	IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
Optional Kit for 10 SATA Drive Support	MCP-220-00147-0B	-	Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
