Hyper A+ Server
AS-1115HS-TNR

1U UP Hyper with 8 hot-swap 2.5″ drive bays and 3 PCIe 5.0 slots



Request Pricing
Previous slide
Next slide
AMD logo
  • Virtualization
  • AI Inference and Machine Learning
  • Enterprise Server
  • Software-defined Storage
  • Cloud Computing
  1. Single 4th Generation AMD EPYC™ 9004 Series Processor
  2. 24 DIMM (2 DPC) Up to 6TB ECC DDR5 RDIMM with single CPU
  3. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
    2 PCIe 5.0 x16 FH, 10.5″L
    1 PCIe 5.0 x16, FH, 6.6″L
  4. 800/1200W Redundant Power Supplies  (Titanium Level);(*Full redundancy based on configuration and application load)
  5. 2 On-board NVMe M.2 slots; 1x PCIe 3.0 x4, 1x PCIe 3.0 x2; 80mm/110mm (Boot)
Product SKUs
A+ Server AS -1115HS-TNR
Motherboard

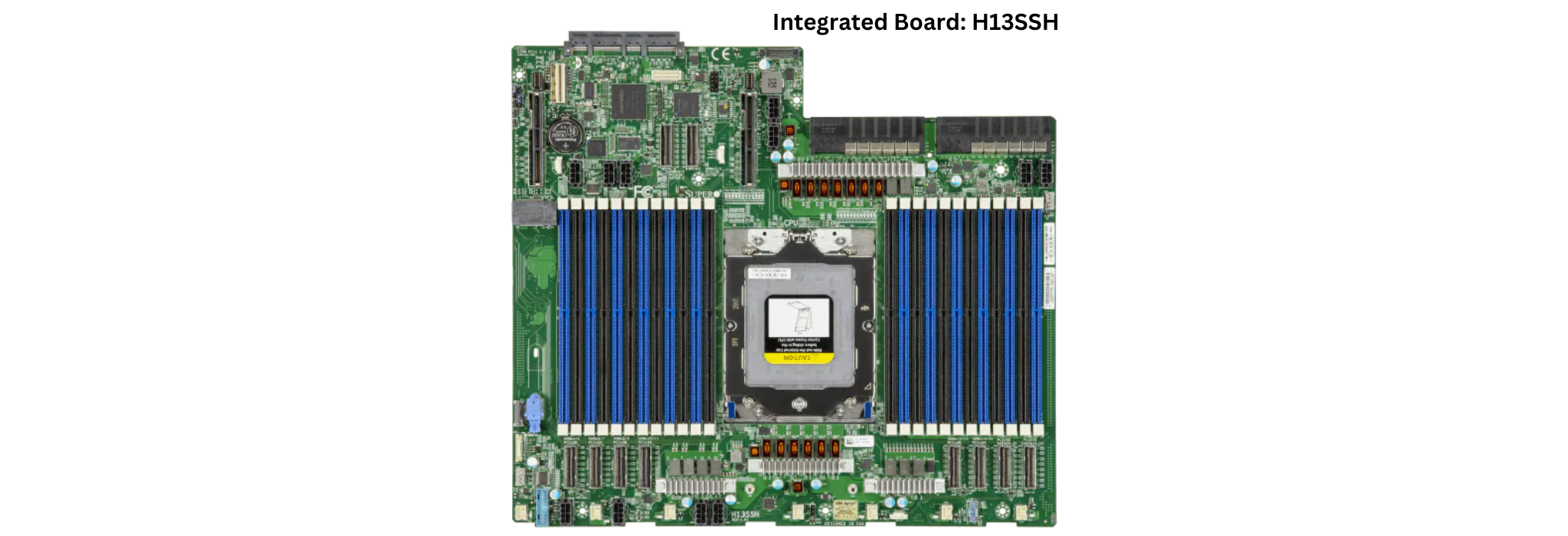

Super H13SSH
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
  • View AIOM Options
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 1 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U
Model
  • CSE-HS119-R1K24P2-A
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29.4" (747 mm)
Package
  • 8.1" (H) x 23.8" (W) x 40.6" (D)
Weight
  • Gross Weight: 51 lbs (23.1 kg)
  • Net Weight: 32 lbs (14.5 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot(s)

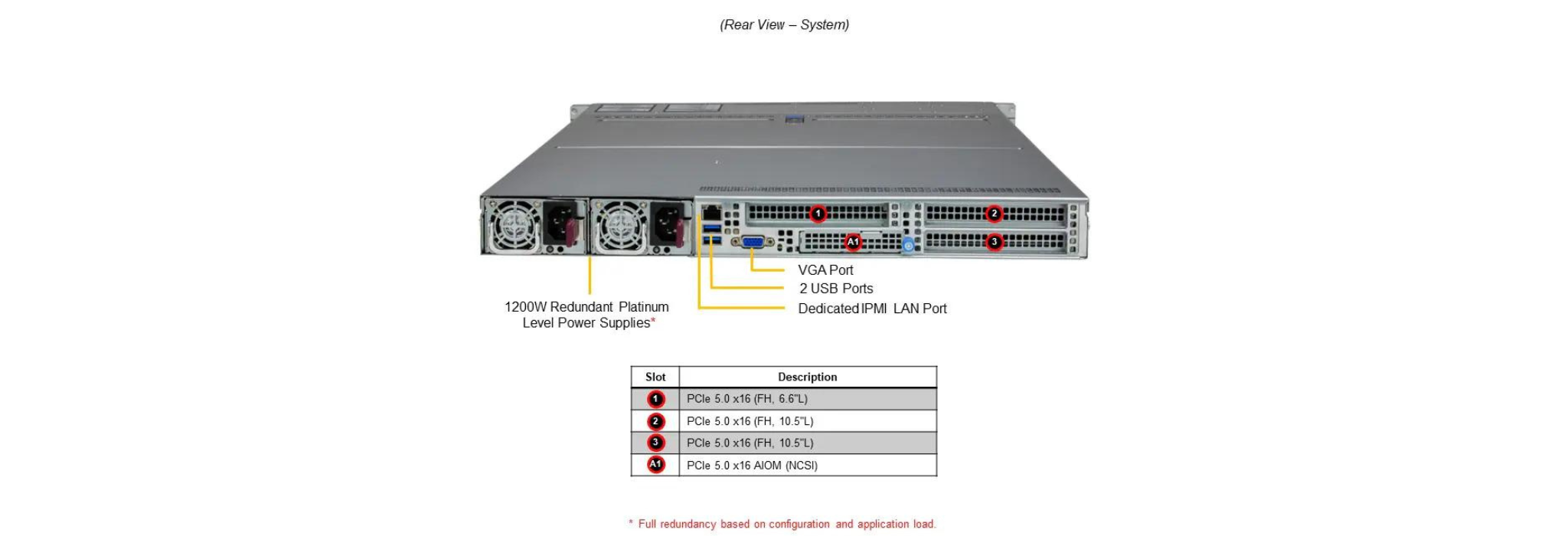

    • 2 PCIe 5.0 x16 FH/10.5"L slot(s)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 22110(default)/2280)
  • 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 22110(default)/2280)
  • View M.2 Options
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Power Supply
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
AC Input 800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)

Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
Optional Parts List
  Part Number Qty Description
12 NVMe CBL-MCIO-1342M5FRFB 1 MCIO x8 (STR to STR), FFC, Bundled 34+42cm, 30AWG
CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
CBL-PWEX-1136-40 1 power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
MCP-220-00178-0B • 4 2.5 thin profile drive tray
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS/SATA/NVME
12 SAS BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS/SATA/NVME
MCP-220-00178-0B • 4 2.5 thin profile drive tray
CBL-PWEX-1136-40 1 power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
CBL-SAST-1273LP-100 (Support HDD slot 0~7)
CBL-SAST-1262LP-100 (Support HDD slot 8~11)		 1
1
1
1		 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
Slimline x8 (STR) to Slimline x4 (STR),64CM
12 SATA CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
CBL-MCIO-1360L4FY 1 MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS/SATA/NVME
MCP-220-00178-0B • 4 2.5 thin profile drive tray
CBL-PWEX-1136-40 1 power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
CBL-MCIO-1326EQL4F 1 MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWG
8 NVMe CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
8 NVMe + 4 SAS CBL-PWEX-1136-40 1 power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
MCP-220-00178-0B • 4 2.5 thin profile drive tray
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS/SATA/NVME
CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
CBL-SAST-1262LP-100 (Support HDD slot 8~11)		 1
1
1		 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (STR) to Slimline x4 (STR),64CM
8 NVMe + 4 SATA CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
CBL-MCIO-1326EQL4F 1 MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWG
CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
CBL-PWEX-1136-40 1 power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
MCP-220-00178-0B • 4 2.5 thin profile drive tray
BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS/SATA/NVME
8 NVMe/SAS Hybrid AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
CBL-SAST-1273LP-100		 1
1
1		 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM
CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
8 NVMe/SATA Hybrid CBL-MCIO-1360L4FY 1 MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm
CBL-KIT-1115HS-TNR-8N 1 8 NVME cable kit
8 SAS AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
CBL-SAST-1273LP-100		 1
1
1		 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM
CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
8 SATA CBL-CDAT-1062Y-45 1 i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
CBL-MCIO-1360L4FY 1 MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm
Chassis Rear Handle Kit MCP-290-11905-0N 1 Hyper 1U rear handle kit for immersion cooling
Drive Bay Dummy Cover MCP-220-11902-0B - Dummy cover for two 2.5" drive bays (top & bottom drive bays)
Rail Set MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11903-0N • (included in the system ) 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
Serial Port DTK Cable with PCIe Bracket CBL-0010L • 1 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket
TPM security module AOM-TPM-9672V-FIPS 1 AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
AOM-TPM-9670H-FIPS 1 AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS
AOM-TPM-9672V 1 AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS
SYS-121H-TNR parts list
