GPU SuperServer SYS-740GP-TNRT

DP Intel, Tower Workstation with 4 GPUs

Key Applications

Scientific Virtualization
Rendering
High Performance Computing
AI / Deep Learning Training

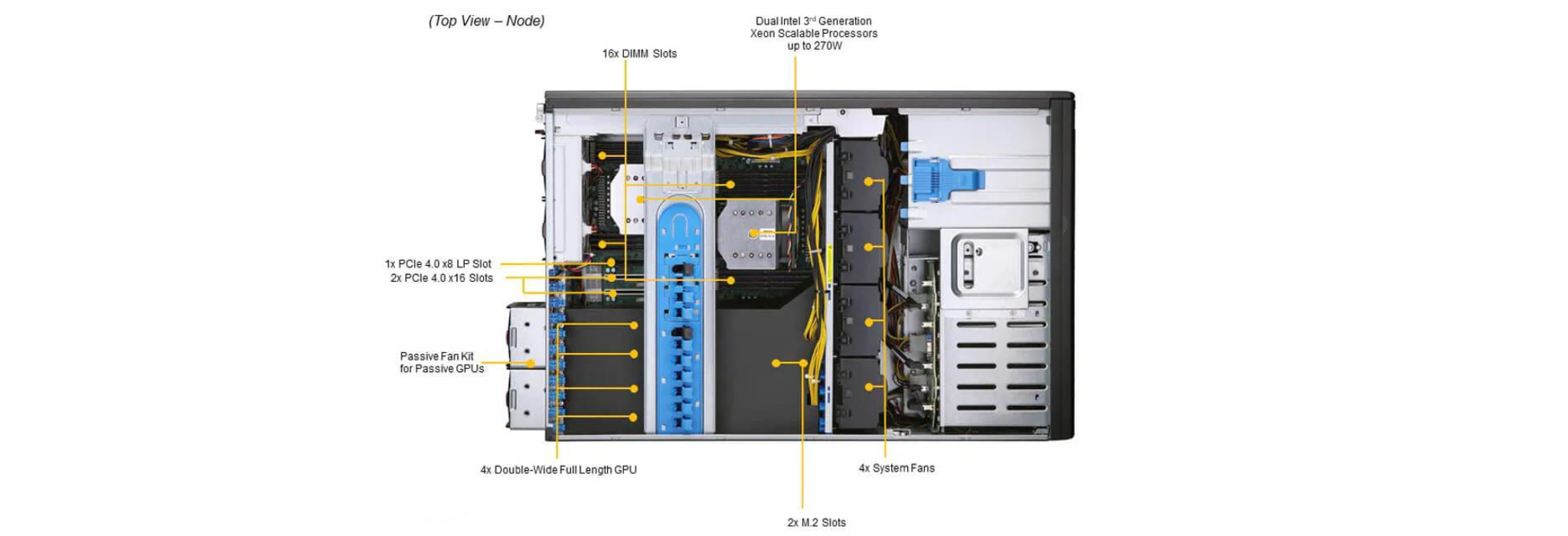

Key features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ; 3200/2933/2666
ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots,
1 PCIe 4.0 x8 LP
Total 8x 3.5″ Hot-swap drive bays
Up to 8 NVMe drives (4 NVMe drives supported by default)
2 M.2 NVMe or SATA for boot drive only
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2200W redundant Titanium level power supplies

Specifications

Product SKUs
SuperServer SYS-740GP-TNRT

Motherboard
Super X12DPG-QT6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width or 6 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A40, A30, A16, A100, A10 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
Certification	NVIDIA CERTIFIED

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 View AOC Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	Full-Tower
Model	CSE-747BTS-R2K20BP

Dimensions and Weight
Height	18.1" (460 mm)
Width	7" (178 mm)
Depth	26.5" (673 mm)
Package	12.7" (H) x 27" (W) x 37.5" (D)
Weight	Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg)
Available Color	black

Front Panel
LED	HDD activity Network activity Power On System Overheat / Fan Fail LED
Buttons	Power On/Off System Reset

Expansion Slots
PCI-Express (PCIe) Configuration	Default 4 PCIe 4.0 x16 FHFL slot(s) 2 PCIe 4.0 x16 LP slot(s) 1 PCIe 4.0 x8 LP slot(s) View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bay(s) 4 front hot-swap 3.5" SAS/SATA drive bay(s) 4 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s) View Drive Options
M.2	2 M.2 NVMe/SATA slot(s) (M-key) View M.2 Options
Peripheral Bays	3 5.25" peripheral bay(s)

System Cooling
Fans	4 heavy duty fans with optimal fan speed control

Power Supply

1x 2200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)	76 x 40 x 336 mm
AC Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List

Standard Parts (Parts Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X12DPG-QT6 CSE-747BTS-R2K20BP	1 1	Super X12DPG-QT6 Motherboard Full-Tower Chassis
Backplane	BPN-NVME4-747N-S8	1	8-port 3.5" HDD/NVMe backplane for 4U Tower chassis, all 8 ports support NVMe Gen4 / SAS / SATA devices.,RoHS
Cable	CBL-PWCD-0900	2	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
	CBL-PWEX-1040	4	PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
	CBL-SAST-1230-100	2	Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
	CBL-SAST-1230-85	2	Slimline x8 (LE) to Slimline x8 (RE),INT,30CM,85 OHm,R
	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
	CBL-0160L	2	US POWER CORD 16AWG, PB FREE
	CBL-0216L	4	4 TO 4 PIN FAN POWER CABLE, 210MM
	CBL-0286L	2	4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
Drive Tray(s)	MCP-220-00150-0B	4	NVMe Panetone 159C on Latch
Drive Tray(s)	MCP-220-00073-0B	3	Black 5.25 drive tray w/o rail (SC747)
Parts	MCP-260-00150-0N	1	STD I/O Shield for X12DPG-QT with EMI Gasket
	MCP-290-74701-0B	1	Black plastic top cover for SC747
	MCP-290-74702-0N	1	GPU Card Holder (11 slots) for SC747TQ, SC842
	MCP-290-74703-0B	1	fixed 3.5" dummy cover for SC747
	MCP-290-74709-0B	1	Plastic feet (2 pcs/set) for 4U tower chassis, black color
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0080AP4	2	4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
*Power Supply	PWS-2K20A-1R	2	1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor	PDB-PT747-6824	1	Power Distributor Board is for 4U GPU solution using regular
*Fan	FAN-0082L4	2	80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
	Fan-0114L4	2	92x38mm 4-PIN PWM FAN W/ HUS for SC747
	FAN-0138L4	2	92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
*Front Bezel	MCP-210-74701-0B	1	SC747 plastic front bezel
*Front Panel	MCP-280-74702-0N	1	SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
	Part Number	Qty	Description
CacheVaults	1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05	-	LSI Supercap w 8GB CV 24 cable (whole kit) & Supercap mounting bracket for PCIe location
DVD Kit	CBL-0044L •	1	SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat
	CBL-0082L •	1	Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
	DVM-LITE-DVDRW24-HBT	1	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Front Bezel	MCP-210-74703-0B	1	Front bezel cover (for 5.25" bay) for rackmount
Global Services & Support	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
GPU Kit	MCP-320-74702-0N-KIT •	1	X11 GPU Kit for passive GPU/Coprocessor support
	MCP-240-00096-0N	-	SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
	MCP-120-74703-0N	-	GPU long offset extender for A100 and MI100
HDD Converter	MCP-220-93801-0B •	-	Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Intel® VROC RAID Key Options	AOC-VROCINTMOD	1	Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
	AOC-VROCPREMOD	1	Intel VROC Premium, RAID 0, 1, 5, 10
	AOC-VROCSTNMOD	1	Intel VROC Standard, RAID 0, 1, 10
Mounting Rails	MCP-290-00059-0B •	1	Rail set+handles, quick/quick, optional for 4U 17.2"W tower
Network Card(s)	AOC-S40G-i2Q	-	Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports.
	AOC-S25G-m2S	-	Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset.
	AOC-STG-i4S	-	Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports.
	AOC-STG-i4T	-	PCIe Low Profile form factor, Quad 10GBase-T Ports (RJ45), based on Intel XL710 + X557-AT4.,RoHS
NVMe Kit	CBL-SAST-1263-85	2	LaneRvsl, Slimline x8 (STR) to Slimline x8 LE,60CM,85 O
	AOC-SLG4-4E4T	1	4 Port NVMe PCIE Gen4 X16 Retimer,HF
	MCP-220-00150-0B •	4	NVMe version of 3.5" HDD Tray (Convert 3.5" to 2.5" for 747/936/938)
Optional Storage Controller Card + Cable(s)	AOC-S3108L-H8iR-16DD & 2x CBL-SAST-1275-100	-	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
	AOC-S3108L-H8iR & 2x CBL-SAST-1275-100	-	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
	AOC-S3008L-L8i & 2x CBL-SAST-1275-100	-	Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0,1,10; MINI SAS HD x4 (STR) to Slimline x4 (LE),INT,75CM,100 OH
Software	SFT-DCMS-Single	-	DataCenter Management +A17:D53Package (per node license)
Trusted Platform Module Options	AOM-TPM-9670V-S-O	1	SPI capable vertical TPM 2.0 provisioned for server,RoHS
