Storage SuperServer
SSG-610P-ACR12N4H

1U internal-mounted storage server with 12 3.5″ SAS/SATA bays (SAS hardware RAID), 4 EDSFF short and 2x 2.5″ 7mm bays

Request Pricing
Intel Logo
  • Database Applications
  • Object Storage
  • Scale-Out Density
  • Scale-out NAS
  • Hyperscale Data Center
  • Big Data Analytics
  • Hadoop & Ceph storage solutions
  1. Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
  2. 2x 25G SFP28 Ports Onboard
  3. 12x 3.5″ hot-swap SAS/SATA, 4x EDSFF Short Bays, 2x 2.5″ 7mm NVMe/SATA drive bays
  4. RAID support via Broadcom® 3916
  5. Front LED Indicator for each drive
    PCIe 4.0 x16 AIOM Support + 3 PCIe 4.0 LP Slots
Product SKUs
SuperServer SSG-610P-ACR12N4H Standard version with PWS-804P-1R (Platinum Level)
SuperServer SSG-610P-ACR12N4H-EU European version with PWS-862A-1R (Titanium Level)
Motherboard
Super X12DPD-A6M25
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2 SFP28 25GbE
  • View AOC Options

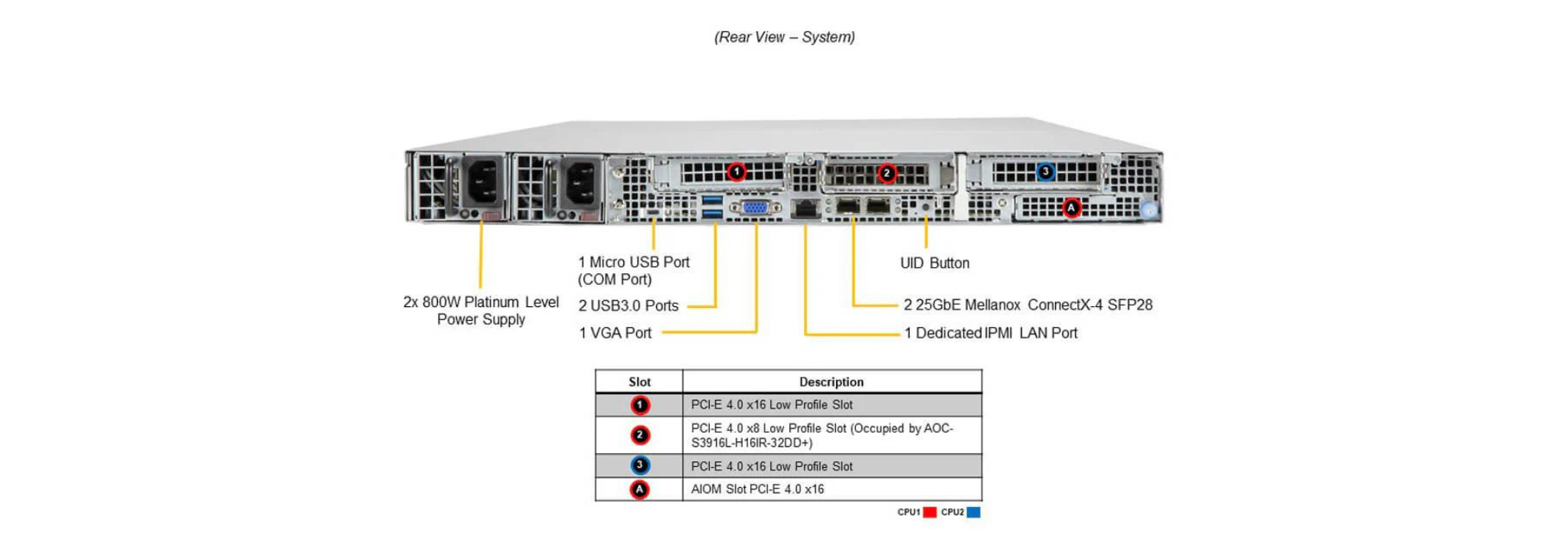

Input / Output
LAN
  • 2 SFP28 25 GbE LAN port(s)
  • 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 port(s)
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-802ETS-R804AMP
Dimensions and Weight
Height
  • 1.7" (43.18 mm)
Width
  • 17.6" (447.04 mm)
Depth
  • 37" (939.8 mm)
Package
  • 12" (H) x 27" (W) x 53.15" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 39.5 lbs (17.9 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x16 LP slot(s)
    • 1 PCIe 4.0 x8 LP slot(s)
    • 1 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bay(s)
    • 12 internal hot-swap 3.5" SAS/SATA drive bay(s)
    • 4 front hot-swap E1.S NVMe drive bay(s)
    • 2 front hot-swap 7mm NVMe drive bay(s)
  • View Drive Options
M.2
  • 2 M.2 NVMe/SATA slot(s) (M-key)
  • View M.2 Options
System Cooling
Fans
  • 6 Heavy Duty 4cm Fan(s)
Power Supply
2x 800W Redundant (1 + 1) Platinum Level power supplies
Note Note: SSG-610P-ACR12N4H-EU (European) SKU uses PWS-862A-1R (Titanium Level)
Dimension (WxHxL) 54.5 x 40.25 x 220 mm
+12V Max: 62.5A / Min: 0.5A (100Vac-127Vac)
  Max: 66.6A / Min: 0.5A (200Vac-240Vac)
  Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
AC Input 750W: 100-127Vac / 50-60Hz
  800W: 200-240Vac / 50-60Hz
  800W: 230-240Vdc / 50-60Hz
Output Type Backplanes (gold finger)

Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Optional Parts List
  Part Number Qty Description
Network Cards AOC-S25G-B2S 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-AG-I2M 1 AIOM Dual-Port 1GbE RJ45,based on i350-AM2
AOC-ATG-I4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1
AOC-ATG-I2SM 1 AIOM Dual-Port 10GbE SFP+,b/ on X710-BM2
AOC-AH25G-M2S2TM 1 AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN
AOC-A100G-B2CM 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508
AOC-631102AC-ADAT 1 Mellanox PCIe 2-port 25GbE SFP28 Gen 3.0/4.0 x 8 RoHS
AOC-653105A-HDAT 1 MCX653105A-HDAT, CX-6 VPI,HDR,200GbE,1xQSFP56,PCIe4x16
AOC-STGS-I2T 1 Std LP 2-port 10G RJ45, Intel X550
AOC-S25G-I2S 1 Std. Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-S100G-M2C 1 Std LP 2-port 100G QSFP28, Mellanox ConnectX-4 EN
AOC-SGP-I2 1 Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q 1 Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S 1 Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
