UP Storage SuperServer
SSG-520P-ACTR12L

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5″ SAS/SATA bays and PCIe 4.0

Request Pricing
Previous slide
Next slide
Intel Logo
  • Enterprise Server
  • Appliance Optimized Storage
  • Database Processing & Storage
  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel®  DCPMM
  3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 12x Direct-attached hot-swap 3.5″ SAS3/SATA3 drive bays, Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ NVMe/SATA (rear, optional)
  6. Redundant Titanium 800W Power Supply
Product SKUs
SuperServer SSG-520P-ACTR12L

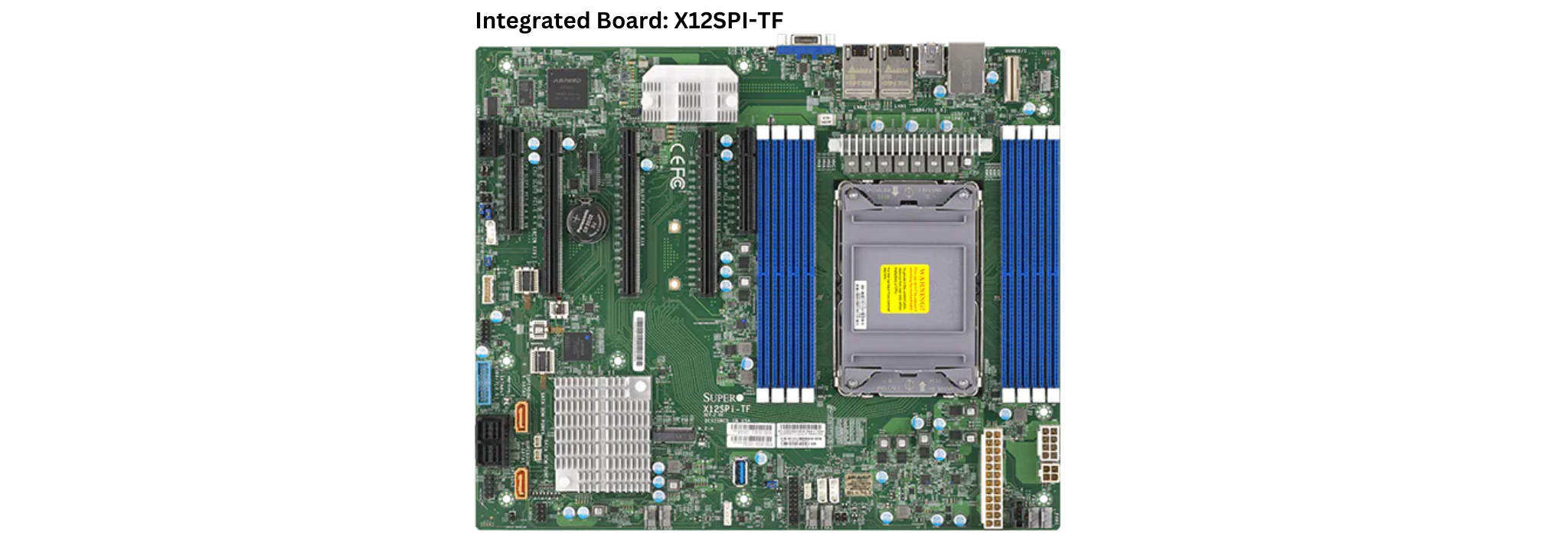

Motherboard
Super X12SPI-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
SAS
  • SAS (12Gbps) via Broadcom® 3816; (IT mode)
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
  • View NVMe Options
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
  • View AOC Options
Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen1 Type-A port(s)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator module (VRM)
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R802LPB
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 4.0 x8 LP slot(s)
    • 2 PCIe 4.0 x16 LP slot(s)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5" SAS/SATA drive bay(s)
  • Option A: Total 14 bay(s)
    • 12 front hot-swap 3.5" SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 3 Heavy Duty PWM 80x80x38mm Fan(s)
Power Supply
1x 800W Redundant Titanium Level power supply
Dimension (WxHxL) 76 x 40 x 336 mm
+12V Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
AC Input 800W: 200-240Vdc / 50-60Hz
Output Type Backplanes (gold finger)

Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Standard Parts (Parts Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X12SPI-TF


CSE-826BTS-R802LPB		 1


1		 Super X12SPI-TF Motherboard


2U Chassis
Add-on Card / Module AOC-S3816L-L16IT-P 1 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-SAST-1249-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM,
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1069 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
Parts MCP-260-00042-1N 1 Standard I/O Shield for X12SPi with EMI Gasket
Manual MNL-2361-QRG 1 520P-ACTR12L/H Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
*Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
*Fan FAN-0166L4 OR 3 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
FAN-0206L4   80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82619-0N + 1x CBL-SAST-1264-85 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
Intel VROC RAID Key for NVMe AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
