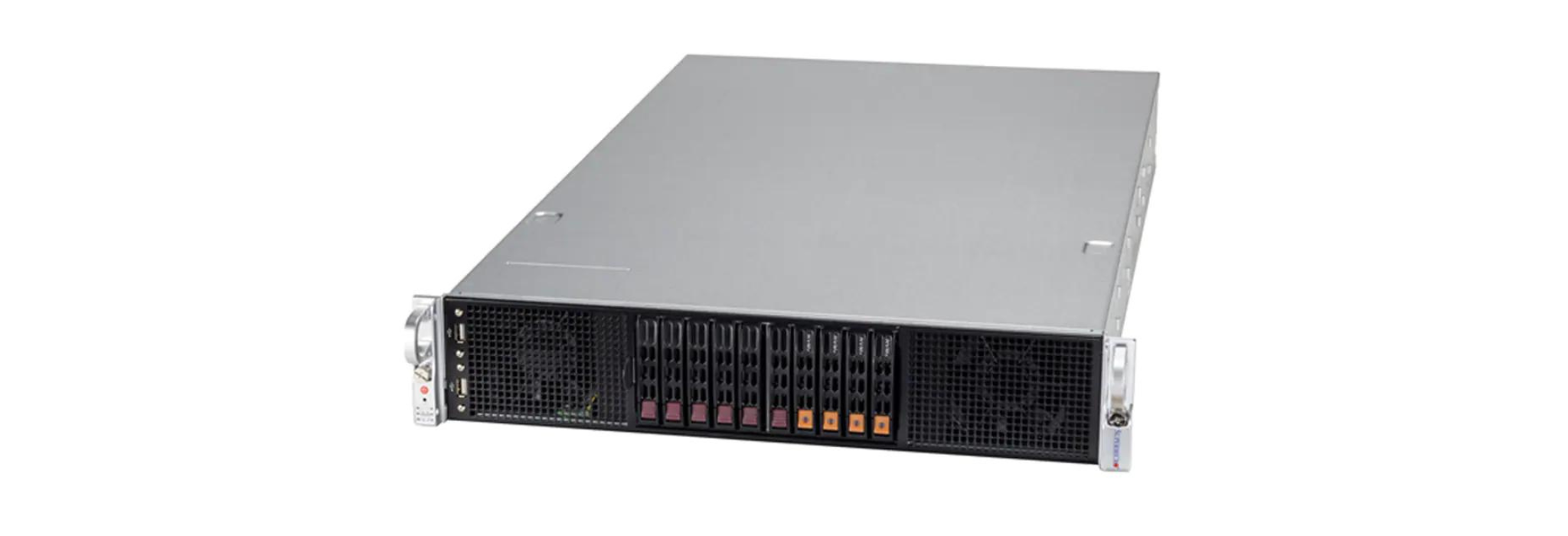

GPU SuperServer SYS-220GP-TNR

DP Intel System with 6 PCIe GPUs

Previous slide
Next slide
Intel and NVIDIA logo
  • Scientific Virtualization
  • VDI
  • High Performance Computing
  • AI/Deep Learning Training
  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMM Slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 6 PCIe Gen 4.0 x16 FH, 10.5″ L
    Up to 2 PCIe Gen 4.0 x8 FH
  5. Flexible networking options
  6. Total 10x 2.5″ Hot-swap drive bays, configurable combination of SATA + NVMe with optional cable, up to 6x NVMe
    Configuration 3: 4x SATA + 6x NVMe
    2x M.2 NVMe for boot drive only (with optional expansion card AOC-SLG3-2M2)
    Configuration 1: 8x SATA + 2x NVMe (PCIe slot 7 + slot 8 enabled)
    Configuration 2: 6x SATA + 4x NVMe (PCIe slot 7 enabled)
  7. 5 counter rotating fans w/ Optimal Fan Speed Control
  8. 2x 2600W redundant Titanium level power supplies
Product SKUs
SuperServer SYS-220GP-TNR
Super X12DPG-AR
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
  • Supports up to 270W TDP CPUs (Air Cooled)
Max GPU Count
  • Up to 6 double-width or 8 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A40, A30, A16, A2, A100, A10
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
  • SATA (6Gbps) ; RAID 0/1/5/10 support
  • Intel® C621A
Network Connectivity
  • Via AIOM
  • View AIOM Options
  • View AOC Options
  • View NVMe Options
Input / Output
  • 1 VGA port(s)
System BIOS
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
  • CSE-218GH2TS-R2K63BP
Dimensions and Weight
  • 3.46" (88 mm)
  • 17.35" (440.7 mm)
  • 30.18" (766.8 mm)
  • 11" (H) x 26.5" (W) x 44.5" (D)
  • Gross Weight: 54 lbs (24.5 kg)
  • Net Weight: 39.5 lbs (17.9 kg)
Available Color
  • Black Front & Silver Body
Front Panel
  • Hard drive activity LED
  • Information LED
  • Network activity LEDs
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 6 PCIe 4.0 x16 FH/10.5"L slot(s)
    • 2 PCIe 4.0 x8 FHFL slot(s)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 6 front hot-swap 2.5" SAS*/SATA drive bay(s)
    • 4 front hot-swap 2.5" NVMe drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
  • View M.2 Options
System Cooling
  • 5 heavy duty fans with optimal fan speed control
Power Supply
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Optional Parts List
  Part Number Qty Description
2.5" NVMe Drive Trays MCP-220-00121-0B 2 Black Gen-3 2.5" NVMe drive tray. Orange tab with lock.
2.5" SATA Drive Trays MCP-220-00047-0B 2 Black gen 3rd hot-swap 2.5inch HDD tray
GPU Brackets MCP-240-21829-0N 1 NVidia A10 GPU Bracket Set
MCP-120-21807-0N 1 NVidia Tesla T4 GPU Bracket Set
MCP-240-21832-0N 1 NVidia A2 Bracket Set
GPU Cables CBL-PWEX-1040 1 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-PWEX-1017 1 PWYCB,GPU,2x4F/CPU to two (2x3F+2x1F)/PCIe,P4.2, 20CM,16/20A
CBL-PWEX-0665 1 PCIe 8 Pin Female(Black) to CPU 8 Pin Female(White)
Intel VROC RAID Key AOC-VROCPREMOD AOC-VROCPREMOD on eStore 1 Intel VROC Premium, RAID 0, 1, 5, 10
Network Cards AOC-STG-i4T 1 Std LP 4-port 10G RJ45, Intel XL710+ X557
AOC-MCX516A-CCAT 1 Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS
AOC-S25G-i2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
AOC-653105A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
AOC-653106A-ECAT 1 ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
AOC-STGS-I2T 1 Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
AOC-STG-b2T 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
Network Cards (AIOM) AOC-ATG-i2T2SM 1 AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
AOC-A25G-m2SM 1 AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
AOC-ATGC-i2TM 1 AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T, Intel X550,RoHS
AOC-ATG-I4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
NVMe/AOC Cables CBL-SAST-1262LP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM. For 2x NVMe and 6x NVMe configurations.
Rear Fan Kit MCP-320-21809-0N 1 External rear fan mounted over slots 5 and 6 to increase operating ambient temperature with 6x A100, A40, A6000, etc.
Storage Controller Cards and Cables AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
CBL-SAST-1264F-100 (for S3808L and S3908L) 1 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM,10
AOC-S3808L-L8IT 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
CBL-SAST-1285-100 (for S3108L) 2 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
AOC-S3108L-H8iR-16DD 1 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
