SuperServer SYS-1019GP-TT

1U Single Processor (Intel) 2 GPU System

Previous slide
Next slide
Intel Logo
  • Edge Computing
  • Micro Data Center
  • AI/ML, Deep Learning Training and Inference
  • Virtualization
  • Cloud Computing

1. Supports up to 2 Active/Passive
    Cooling NVIDIA® GPUs in 1U


2. Single Socket P (LGA 3647) supports
    2nd Gen Intel® Xeon® Scalable
    processor (Cascade Lake/Skylake)


3. 6 DIMMs; up to 1.5TB 3DS ECC
    Supports Intel® Optane™ DCPMM††


4. 2 PCI-E 3.0 x16 slots (support
    double-width GPU), 1 PCI-E 3.0 x16
    low-profile slot (center right)


5. 6 Hot-swap 2.5″ SAS/SATA drive bays


6. 2x 10GBase-T LAN ports via Intel X550


7. 2 M.2 form factor 2280, supports
    both M.2 NVMe and SATA SSD


8. 8 Heavy duty 4cm counter-rotating
    4cm fans with air shroud & optimal fan
    speed control


9. 1400W High-efficiency Power Supply
    Platinum Level (94%+)

Product SKUs
  • SuperServer 1019GP-TT

Super X11SPG-TF
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-205W
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
Supported GPUs
  • 2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • NVIDIA V100, M10, P40, T4, Quadro RTX
  • Supports both active and passive cooled GPUs
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 3 x16 Switch CPU-GPU Interconnect
System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Tech Standard Solutions sales rep for more info.
On-Board Devices
  • Intel® C621 chipset
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500

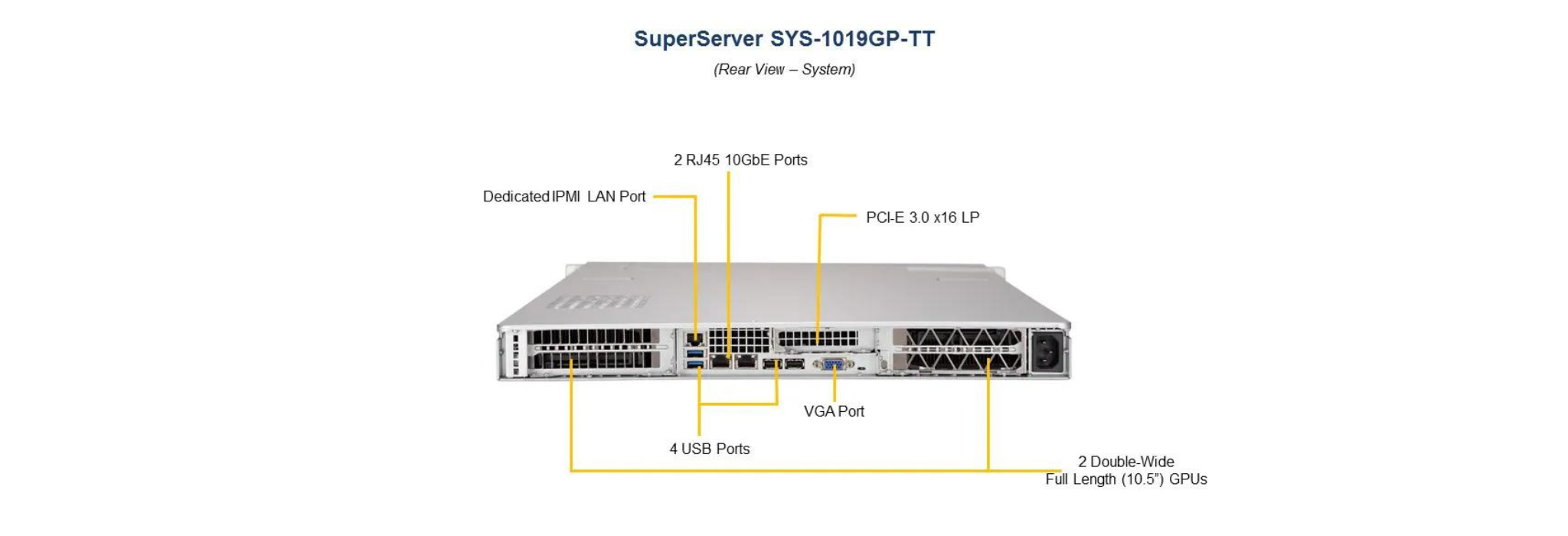

Input / Output
  • 6 SATA3 (6Gbps) ports
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
  • 1 VGA port
Serial Port
  • 1 COM Port header
  • 2 DOM (Disk on Module) power connectors
System BIOS
  • AMI 32Mb SPI Flash ROM
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 1U Rackmount
  • CSE-118GTS-1K43BP2
  • 1.7" (43mm)
  • 17.2" (437mm)
  • 28.5" (724mm)
  • Net Weight: 28 lbs (12.70 kg)
  • Gross Weight: 36 lbs (16.33 kg)
Available Color
  • Black
Front Panel
  • Power On/Off button
  • System Reset button
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED
Expansion Slots
  • 2 PCI-E 3.0 x16 (FHFL) slots - supporting up to 2 GPUs
  • 1 PCI-E 3.0 x16 slot (left riser)
Drive Bays / Storage
  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • Supports 2 M.2 form factor 2280
  • Supports both M.2 NVMe and SATA SSD
System Cooling
  • 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control
Power Supply
1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
  • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby
  • 6 Amp
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 14 Amp
  Platinum Certified
Operating Environment
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X11SPG-TF
Super X11SPG-TF Motherboard
1U SC118G Chassis
Backplane BPN-SAS-118TQ 1 6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD
Cable 2 CBL-CDAT-0662 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 3 CBL-PWEX-0663 1 PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH
Cable 4 CBL-PWEX-1028 1 Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Riser Card RSC-R1U-E16R 1 RSC-R1U-E16R
Riser Card RSC-R1UG-E16-UP 1 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
Riser Card RSC-R1UG-E16R-UP 1 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K43F-1R 1 1400W redundant digital power supply
Optional Parts List
  Part Number Qty Description
Other GPUs Cables CBL-PWEX-1059 1 Quadro family GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS
AOC-S3008L-L8i (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
Super Cap for LSI 3108 BKT-BBU-BRACKET-05
Mounting Bracket for LSI BBUs
LSI Super Cap
Network Cards AOC-S100G-m2C - Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, based on Mellanox ConnectX-4 EN chipset
AOC-MCX516A-CCAT - Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS
AOC-S40G-i2Q - Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports
AOC-MCX512A-ACAT - Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS
AOC-MCX4121A-ACAT - Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS
AOC-S25G-b2S - Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, based on Broadcom BCM57414
AOC-S25G-m2S - Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset
AOC-STG-b4S - Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports
AOC-STG-i4S - Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports
AOC-STGN-i2S - Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports
AOC-STGN-i1S - Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port
AOC-STG-i2T - Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports
AOC-SGP-i4 - Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports
AOC-SGP-i2 - Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports
GPUs Air Shroud Kit MCP-310-81806-0B - Nvidia Fermi GPU Air shroud for 818G/118G
Global Services & Support OS4HR3/2/1
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
