Hyper A+ Server AS-2025HS-TNR

2U Hyper with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots

Request Pricing
AMD and NVIDIA Certified
  • Virtualization
  • AI Inference and Machine Learning
  • Enterprise Server
  • Software-defined Storage
  • Cloud Computing
  1. 4th Generation AMD EPYC™ 9004 Series Processors
  2. ASPEED AST2600
  3. 24x DIMM slots, DDR5-4800MHz memory, support up to 6 TB
  4. 1 AIOM/OCP NIC 3.0 Slot
    Configuration Options for up to;
    4 PCIe 5.0 x16 Slots OR;
    8 PCIe 5.0 x8 Slots or;
    3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or;
    2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or;
    1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
  5. 1600W Redundant Power Supplies (Titanium Level)
    Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level); (*Full
    redundancy based on configuration and application load)
  6. 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
Product SKUs
A+ Server AS -2025HS-TNR
Motherboard
Super H13DSH
Processor
CPU
  • Dual Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 256C/512T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, L40, RTX A6000, RTX A5000, RTX A2000, RTX 6000 Ada Generation, RTX 4000, L40S, L4, A40, A16, A100
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
  • View AIOM Options
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
BIOS Features
  • UEFI 2.8
  • SMBIOS 3.5 or later
  • ACPI 6.4
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U
Model
  • CSE-HS829-R1K63P-A
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (437 mm)
Depth
  • 31.6" (803 mm)
Package
  • 10.4" (H) x 23.8" (W) x 43.6" (D)
Weight
  • Gross Weight: 69 lbs (31.3 kg)
  • Net Weight: 39 lbs (17.7 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots

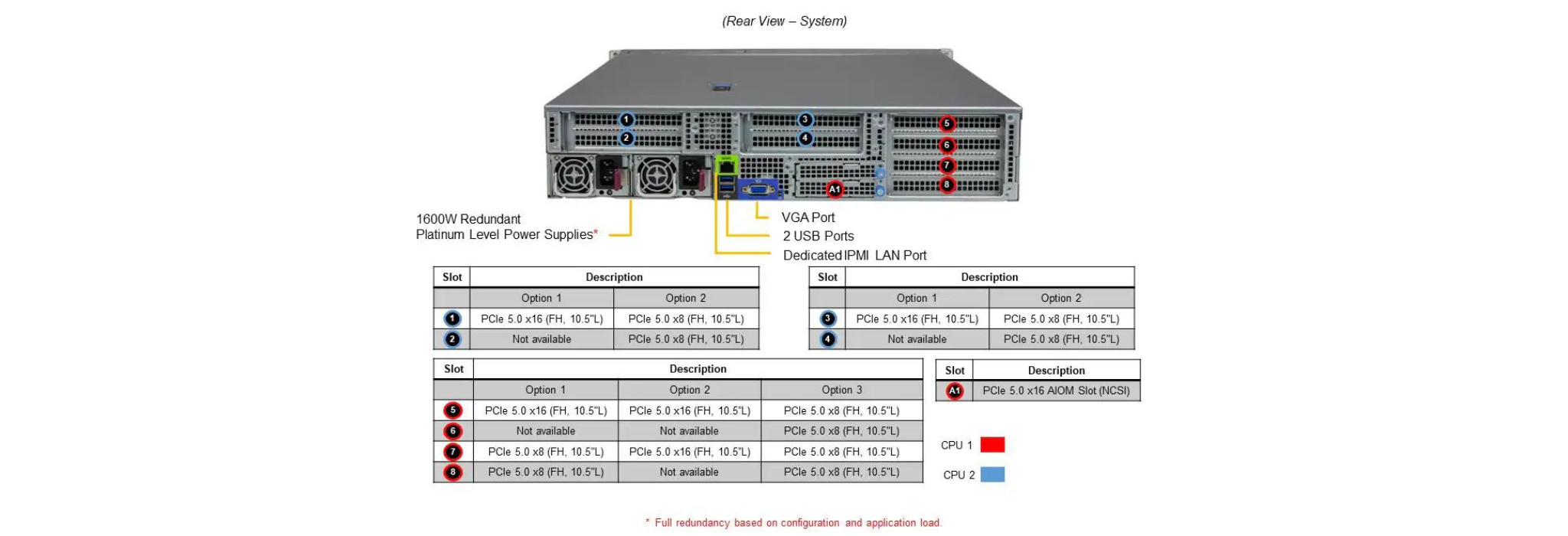

PCI-Express (PCIe) Configuration
    • Default
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option A*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option B*
      • 2 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option C*
      • 2 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option D*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 2 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option E*
      • 4 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option F*
      • 4 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option G*
      • 3 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 2 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option H*
      • 2 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 4 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • Option I*
      • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)
      • 6 PCIe 5.0 x8 (in x16) FHFL slot(s)
      • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
...
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s)
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 4 counter-rotating 80x80x38mm Fan(s)
Power Supply
1x 1600W Redundant Titanium Level power supply
Dimension (WxHxL) 73.5 x 40 x 265 mm
+12V Max: 83.3A / Min: 0A (100Vac-127Vac)
  Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB Max: 3.5A
AC Input 1000W: 100-127Vac / 50-60Hz
  1600W: 200-240Vac / 50-60Hz
  1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type Backplanes (gold finger)

Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
Optional Parts List
  Part Number Qty Description
***Data Cable Options*** - - -
12 NVME CBL-KIT-2025HS-TNR-12N 1 12 NVME cable kit
12 SAS AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
CBL-SAST-1276F-100
CBL-SAST-1201F-100		 1
1
1
1		 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
SlimSAS x8 (STR) to SLL x4 STR,FFC,90CM
CBL-CDAT-0845-48 1 I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG
12 SATA CBL-MCIO-1255S4Y • 2 MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG
CBL-CDAT-0845-48 1 I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG
4 NVME + 8 SATA CBL-MCIO-1245M5 • 1 MCIO x8 (STR to STR),45cm,85OHM
CBL-MCIO-1250M5-Z 1 MCIO x8 (STR to STR),50cm,30AWG
CBL-MCIO-1255S4Y • 1 MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG
8 NVME + 4 SAS CBL-MCIO-1245M5 • 3 MCIO x8 (STR to STR),45cm,85OHM
CBL-MCIO-1250M5-Z 1 MCIO x8 (STR to STR),50cm,30AWG
AOC-S3808L-L8iT OR
AOC-S3908L-H8iR
CBL-SAST-1201F-100		 1
1
1		 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
SlimSAS x8 (STR) to SLL x4 STR,FFC,90CM
8 NVME + 4 SATA CBL-MCIO-1245M5 • 3 MCIO x8 (STR to STR),45cm,85OHM
CBL-MCIO-1250M5-Z 1 MCIO x8 (STR to STR),50cm,30AWG
CBL-MCIO-1255S4Y • 1 MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG
Chassis Rear Handle Kit MCP-290-21907-0N 1 Hyper 2U rear handle kit for immersion cooling
Drive Bay Dummy Cover MCP-290-82521-0B - Dummy cover for one 3.5" drive bay
PCIe Slot 1 (1 by16) LBL-4000 1 Cabled PCIe Slot Warning Label
CBL-MCIO-1226M5R • (All other configurations)
(CBL-MCIO-1255M5R) (12 NVME configuration)		 1
1		 MCIO x8 (STR to RA),26CM,85OHM
MCIO X8 (STR to RA), 55cm, 30AWG,85Ohm
CBL-MCIO-1233M5R • (All other configurations)
(CBL-MCIO-1255M5R) (12 NVME configuration)		 1
1		 MCIO x8 (STR to RA),33cm,85OHM
MCIO X8 (STR to RA), 55cm, 30AWG,85Ohm
RSC-H-68G5 1 1U LHS Hyper Riser card with one PCIe 5.0 X16
CBL-PWEX-1136YB-25 1 MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG
MCP-240-21108-0N 1 Riser Bracket(2-slot) for RSC-H-68G5
PCIe slot 1+2 (2 by 8) CBL-PWEX-1136-40 1 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG
CBL-MCIO-1233M5R • (All other configurations)
(CBL-MCIO-1255M5R) (12 NVME configuration)		 1
1		 MCIO x8 (STR to RA),33cm,85OHM
MCIO X8 (STR to RA), 55cm, 30AWG,85Ohm
CBL-MCIO-1232M5 • (All other configurations)
(CBL-MCIO-1245M5 •) (12 NVME configuration)		 1
1		 MCIO x8 (STR to STR),32cm,85OHM
MCIO x8 (STR to STR),45cm,85OHM
MCP-240-21108-0N 1 Riser Bracket(2-slot) for RSC-H-68G5
RSC-H-68G5 1 1U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe Slot 3 (1 by 16) LBL-4000 1 Cabled PCIe Slot Warning Label
CBL-GNZ4-1227M5YRR16 1 GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm
CBL-PWEX-1136YB-25 1 MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG
MCP-120-82927-0N 1 Middle riser support bracket
MCP-240-21108-0N 1 Riser Bracket(2-slot) for RSC-H-68G5
RSC-H-68G5 1 1U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 3+4 (2 by 8) MCP-240-21108-0N 1 Riser Bracket(2-slot) for RSC-H-68G5
CBL-GNZ4-1227M5YR21 1 GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm
CBL-PWEX-1136YB-25 1 MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG
MCP-120-82927-0N 1 Middle riser support bracket
RSC-H-68G5 1 1U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 5 (1 by 16) + slot 7+8 (2 by 8) LBL-4000 1 Cabled PCIe slot Warning Label
CBL-MCIO-1226AM5 • 1 MCIOx8 (STR to STR),26cm,LNRV,30AWG
CBL-MCIO-1222AM5 • 1 MCIOx8 (STR to STR),22cm,LNRV,30AWG
MCP-240-21908-0N 1 Riser Bracket(4-slot) for RSC-H2-6888G5L
RSC-H2-6888G5L 1 2U LHS Hyper Riser card with 4 PCIe 5.0 slots
PCIe slot 5+7 (2 by 16) LBL-4000 1 Cabled PCIe slot Warning Label
RSC-H-68G5 1 1U LHS Hyper Riser card with one PCIe 5.0 X16
CBL-MCIO-1226AM5R • 2 MCIOx8 (STR to RA),26cm,LNRV,30AWG
CBL-PWEX-1136YB-25 1 MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,YRB,8.5A/p,18AWG
RSC-H-6G5L 1 1U LHS Hyper riser card with one PCIe 5.0 X16 slot
MCP-240-21908-0N 1 Riser Bracket(4-slot) for RSC-H2-6888G5L
PCIe slot 5-8 (4 by 8) RSC-H2-6888G5L 1 2U LHS Hyper Riser card with 4 PCIe 5.0 slots
CBL-MCIO-1222AM5 • 2 MCIOx8 (STR to STR),22cm,LNRV,30AWG
MCP-240-21908-0N 1 Riser Bracket(4-slot) for RSC-H2-6888G5L
Rail Set MCP-290-11903-0N • 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N (included in the system ) 1 35.25" ball-bearing rail set for Hyper servers
MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
Serial Port DTK Cable with PCIe Bracket CBL-0010L • 1 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket
TPM security module AOM-TPM-9672V-FIPS 1 AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
AOM-TPM-9670H-FIPS 1 AOM-TPM-9670H-FIPS supporting FIPS 140-2
AOM-TPM-9672V 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
SYS-121H-TNR parts list

Guaranteed support from day one

We’re committed to having your back no matter the issue or time of day, starting when we first connect.

Experts on standby when needed icon

Experts on standby when needed

Get the answers you need fast with guidance from our support team.

Price match anyone icon

Price match anyone

Stay within your budget by paying the lowest, most up-to-date market prices.

Free ground shipping on everything icon

Free ground shipping on everything

Avoid paying hefty shipping fees each time you need a new product.

Talk to a solution expert today

Learn how we level up your systems for a quicker, more efficient workflow.

Contact Us
Tech Standard Solutions logo

747-300-5288
